Fret Wire Specifications

Specifications and pricing are subject to change without prior notification. Please see the specific product page for quantity discounts.

Most fret profiles have a standard 0.020″ tang width. For installation, it is typically recommended that it is installed into a 0.023″ fret slot. Other tang sizes will require different slot sizes.

Fret wire is available in coils, sold by the pound; 2 foot straight length pieces; sold by the piece; and 25 piece sets, with each piece 2.75″ in length radiused to 10″.





Reference # Crown Size
(Width & Height)		 Tang Width Alloy Feet per
Pound		 2ft Lengths
per Pound		 By the Pound
Coiled		 2ft Length
Straight		 25 Piece
Set
Fret Wire 37053-200 .053″ x .037″
(1.35 x .94 mm)		 0.0200" NS18% 90.9 45 ❌ ✅ ❌
Fret Wire 37053-200-EVO .053″ x .037″
(1.35 x .94 mm)		 0.0200" EVOgold™ Ni-Free 91.0 45 ❌ ✅ ❌

* All FW37053 wire is sold in 24″ straight lengths. Please note that the tang width for the FW37053 is 0.020″ for a standard 0.0230″ fret slot. The tang width for both the FW37053-230 and FW37053-230-EVO is 0.023″ and will require a fingerboard slot of 0.025-0.026″ to install properly.





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 37080 .080″ X .037 (2.03 X .94 mm)
Standard Tang width 0.0195″		 0.0195" NS18% 75.3 37 ✅ ✅ ✅
Fret Wire 37080-S .080″ X .037 (2.03 X .94 mm) 0.0195" Stainless Steel 83.0 41 ✅ ✅ ✅
Fret Wire 37080-EVO .080″ X .037 (2.03 X .94 mm) 0.0195" EVOgold™ Ni-Free 75.4 37 ✅ ✅ ✅



fretwire3



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 39040-S* .040″ X .039 (1.02 X 1.00 mm) 0.0200" Stainless Steel 135.5 67 ❌ ✅ ❌
* Sold in 24″ straight lengths





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 39106 .106″ x .039″ (2.69 x 0.99 mm) 0.0236" NS18% 53.4 26 ✅ ✅ ❌





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 40080-200 .080″ X .040 (2.03 X 1.00 mm) 0.0200" NS18% 71.2 35 ✅ ✅ ❌
Fret Wire 40080-220 .080″ X .040 (2.03 X 1.00 mm) 0.0220" NS18% 69.2 34 ❌ ✅ ❌
Fret Wire 40080-235 .080″ X .040 (2.03 X 1.00 mm) 0.0235" NS18% 67.5 33 ❌ ✅ ❌
Fret Wire 40080-250 .080″ X .040 (2.03 X 1.00 mm) 0.0250" NS18% 66.0 33 ❌ ✅ ❌



fretwire4



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 43080 .080″ X .043 (2.03 X 1.09 mm) 0.0200" NS18% 69.7 34 ✅ ✅ ✅
Fret Wire 43080-S .080″ X .043 (2.03 X 1.09 mm) 0.0200" Stainless Steel 76.9 38 ✅ ✅ ✅
Fret Wire 43080-EVO .080″ X .043 (2.03 X 1.09 mm) 0.0200" EVOgold™ Ni-Free 69.7 34 ✅ ✅ ✅





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 43080-217* .080″ X .043 (2.03 X 1.09 mm) 0.0217" NS18% 58.7 29 ✅ ✅ ❌
* Comes with a 0.0217″ width tang plus a deeper tang depth





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set

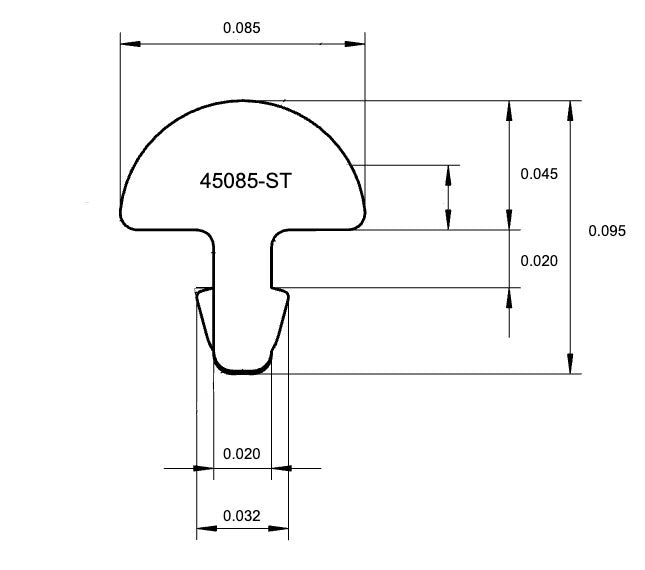

Fret Wire 45085 .085″ x .045″ (2.16 x 1.14 mm) 0.0200" NS18% 57.7 28 ✅ ✅ ✅



fretwire5



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 45100 .100″ X .045 (2.54 X 1.14 mm) 0.0220" NS18% 51.5 25 ✅ ✅ ❌





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 47090 .090″ x .047″ (2.28 x 1.19 mm) 0.0210" NS18% 54.1 27 ✅ ✅ ✅



fretwire6



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 47095* .095″ X .047 (2.41 X 1.19 mm) 0.0210" NS18% 52.3 26 ✅ ✅ ✅
Fret Wire 47095-S .095″ X .047 (2.41 X 1.19 mm) 0.0210" Stainless Steel 57.6 28 ✅ ✅ ✅
Fret Wire 47095-EVO .095″ X .047 (2.41 X 1.19 mm) 0.0210" EVOgold™ Ni-Free 52.3 26 ✅ ✅ ✅

*Sold by the pound with your choice of an 8″ or 10″ radius.



fretwire7



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 47104 .104″ X .047 (2.64 X 1.19 mm) 0.0200" NS18% 51.3 25 ✅ ✅ ✅
Fret Wire 47104-S .104″ X .047 (2.64 X 1.19 mm) 0.0200" Stainless Steel 56.6 28 ✅ ✅ ✅
Fret Wire 47104-EVO .104″ X .047 (2.64 X 1.19 mm) 0.0200" EVOgold™ Ni-Free 51.4 25 ✅ ✅ ✅



fretwire8



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 50078 .078″ x .050″ (1.98 x 1.27 mm) 0.0200" NS18% 62.1 31 ✅ ✅ ❌





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 50085 .085″ x .050″ (2.16 x 1.27 mm) 0.0200" NS18% 58.9 29 ✅ ✅ ❌





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 51100 .100″ X .051 (2.54 X 1.30 mm) 0.0200" NS18% 47.7 23 ✅ ✅ ✅
Fret Wire 51100-S .100″ X .051 (2.54 X 1.30 mm) 0.0200" Stainless Steel 52.6 26 ✅ ✅ ✅
Fret Wire 51100-EVO .100″ X .051 (2.54 X 1.30 mm) 0.0200" EVOgold™ Ni-Free 47.7 23 ✅ ✅ ✅



fretwire11



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 51108 .108″ X .051 (2.75 X 1.30 mm) 0.0220" NS18% 45.0 22 ✅ ✅ ✅
Fret Wire 51108-S .108″ X .051 (2.75 X 1.30 mm) 0.0220" Stainless Steel 49.6 24 ✅ ✅ ✅



fretwire12



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 55090 .090″ X .055 (2.28 X 1.40 mm) 0.0200" NS18% 50.3 25 ✅ ✅ ✅
Fret Wire 55090-S .090″ X .055 (2.28 X 1.40 mm) 0.0200" Stainless Steel 55.4 27 ✅ ✅ ✅
Fret Wire 55090-EVO .090″ X .055 (2.28 X 1.40 mm) 0.0200" EVOgold™ Ni-Free 50.3 25 ✅ ✅ ✅





Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 55095 .095″ x .055″ (2.41 x 1.40 mm) 0.0200" NS18% 45.7 22 ✅ ✅ ✅



fretwire13



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 57110 .110″ X .057 (2.79 X 1.45 mm) 0.0200" NS18% 40.2 20 ✅ ✅ ✅
Fret Wire 57110-S .110″ X .057 (2.79 X 1.45 mm) 0.0200" Stainless Steel 44.3 22 ✅ ✅ ✅
Fret Wire 57110-EVO .110″ X .057 (2.79 X 1.45 mm) 0.0200" EVOgold™ Ni-Free 40.2 20 ✅ ✅ ✅



fretwire14



Reference # Crown Size (Width & Height) Tang Width Alloy Feet per Pound 2ft Lengths per Pound By the Pound Coiled 2ft Straight Length 25 Piece Set
Fret Wire 58118 .118″ X .058 (2.99 X 1.47 mm) 0.0210" NS18% 38.1 19
✅
✅
✅
Fret Wire 58118-S .118″ X .058 (2.99 X 1.47 mm) 0.0210" Stainless Steel 42.4 21
✅
✅
✅
Fret Wire 58118-EVO .118″ X .058 (2.99 X 1.47 mm) 0.0210" EVOgold™ Ni-Free 38.1 19
✅
✅
✅
